AccuGUARD Gauges and Diaphragm Seals
AccuGUARD Gauges are designed to enhance the performance of chemical feed systems. Adding a pressure gauge to any system will help to ensure that optimal pressure are monitored and maintained. Without proper protection, process fluids can contaminate and damage in-line instrumentation.
AccuGUARD Diaphragm Seals are designed to protect and isolate pressure gauges and expensive instrumentation from corrosive, high temperature, or viscous process media.

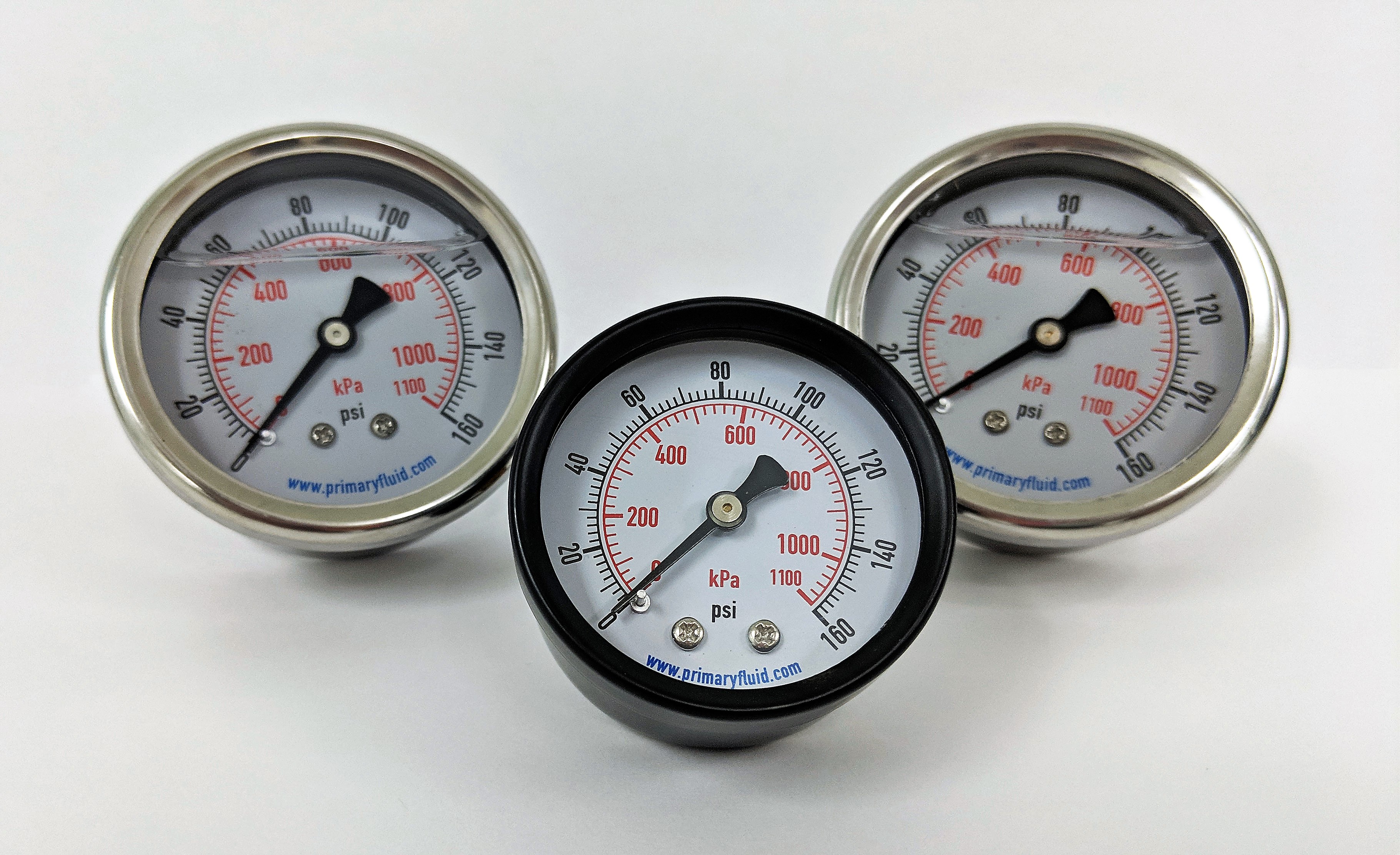

AccuGUARD Gauges
Features:
- Gauge Diameters between 2" and 4"
- 1/4" NPT Connections
- Gauge housing in either a Steel case or 304 Stainless Steel
- Brass or 316L S/S Internals
- Five gauge indication ranges, up to 0 - 400 psig / 0 - 2800 kPa

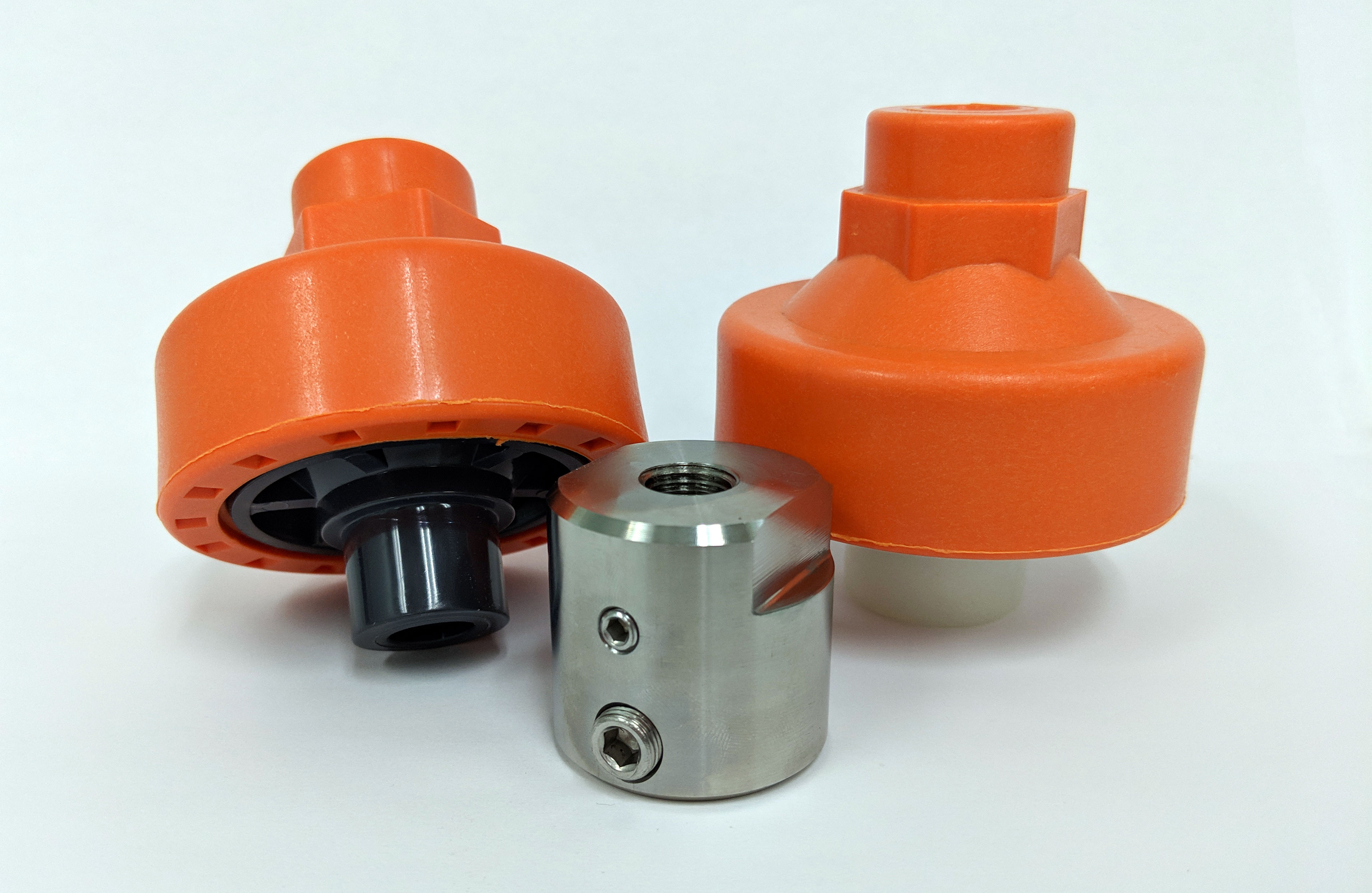

AccuGUARD Diaphragm Seals
Features:
- Transfers process pressure accurately without direct contact with process fluids
- Removes the need for expensive instrumentation
- Easily installed and available in five chemically resistant materials of construction (PVC, CPVC, PP, PVDF, and Stainless Steel)
- Optional diaphragm materials (Viton, EPDM, PTFE, and 316 S/S)
- Available in 1/4" FNPT and BSPT connection types
- Thermoplastic units rated to 240 psig (16 BARG) at 21℃ (70℉)
- 316L S/S Units rated to 5800 psig (400 BARG) at 21℃ (70℉)
